DJI AGRAS T50 Spraying Drone Ready to Fly Kit

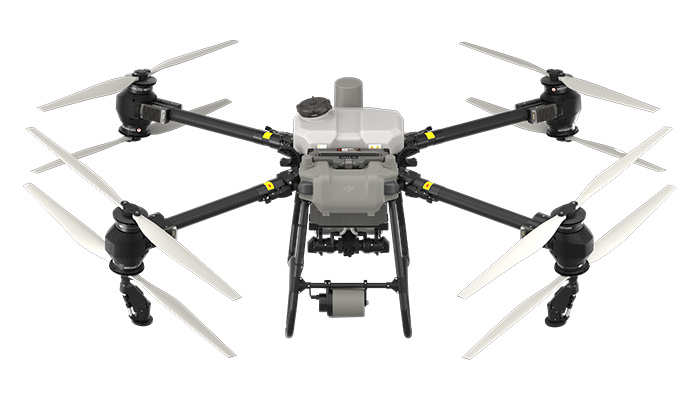

dji agras t50 rear view
dji agras t50 front view

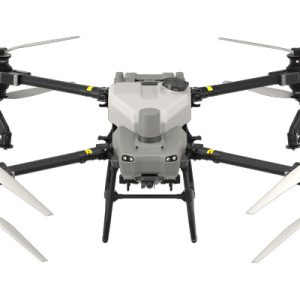

dji agras t50
dji agras t50 side view
C8000 Intelligent Power Supply
DB1560 Intelligent Flight Battery

DJI AGRAS T50 Spraying Drone Ready to Fly Kit

$24,519.00

The DJI AGRAS T50 sets a new standard for agricultural drone operations. Featuring a robust coaxial twin-rotor propulsion system and a split-type torque-resistant structure, it ensures exceptional stability while handling payloads of up to 40 kg for spraying or 50 kg for spreading.

Equipped with a Dual Atomizing Spraying System, Front and Rear Phased Array Radars, and a Binocular Vision System, the AGRAS T50 delivers precision and reliability. Whether for surveying, spraying, or spreading, it performs seamlessly across various applications, ensuring consistent and efficient operations. Learn More

Includes:

  • DJI Agras T50 x 1
  • DJI Agras T50 Remote Control
  • DJI T50 Battery DB1560 x 2
  • Charging Station C8000 x 1
  • 2600W Cable x 2



-
+

Specs

Categories: ,

Description

Dual Atomizing Spraying System

The DJI AGRAS T50’s Dual Atomizing Spraying System delivers an impressive flow rate of up to 16 L/min with two sprinklers, ensuring uniform, fine spray droplets without leaks. For operations requiring higher application volumes, an additional pair of centrifugal sprinklers can be installed, boosting the flow rate to 24 L/min with four sprinklers. In manual flight mode, the Reverse Directional Spray feature with four sprinklers streamlines operations, allowing efficient spraying without the need for turning maneuvers.

Magnetic Drive Impeller Pump

Dual pump flow rate of up to 24 L/min[3]. This is a 100% increase compared with the previous generation, to meet demands of fields, orchards, and high-temperature environments.

Dual Atomizing Centrifugal Sprinklers

Droplet size can be adjusted between 50-500 μm, depending on the chemicals used.

Brand-New Solenoid Valves

Precision starting and stopping eliminates leaking.

DJI AGRAS T50 Spreading System

1,500 kg per hour. DJI AGRAS T50’s new spreader and spiral channel spinning disk significantly improve spreading efficiency and smoothness.

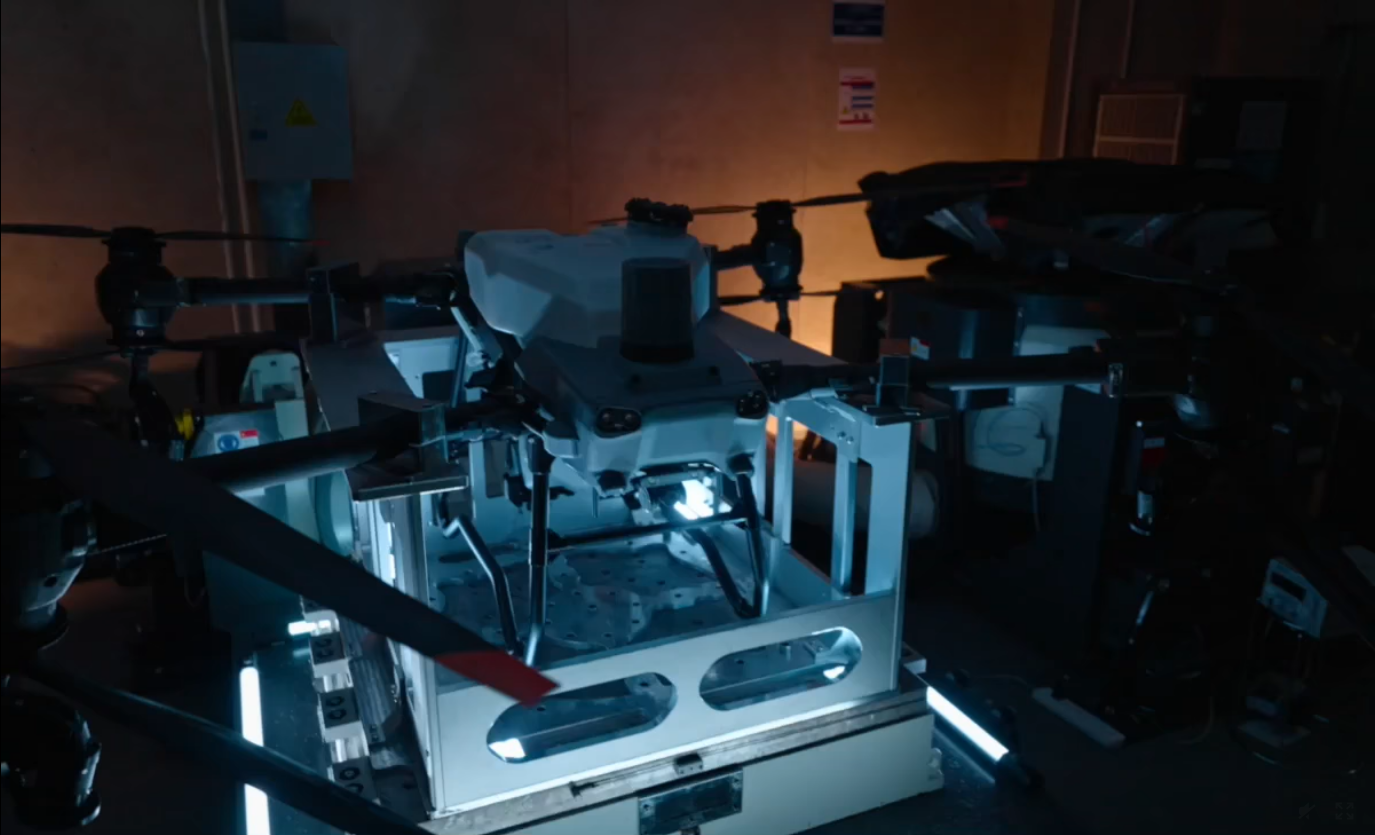

Tested for reliability, durability, and safety

Spraying and spreading operations are frequent, intense, and take place in complex environments. DJI AGRAS T50 has passed hundreds of reliability tests and its main body is durable to help ensure safe operation.

Double your peace of mind with Binocular Vision and Dual Radar

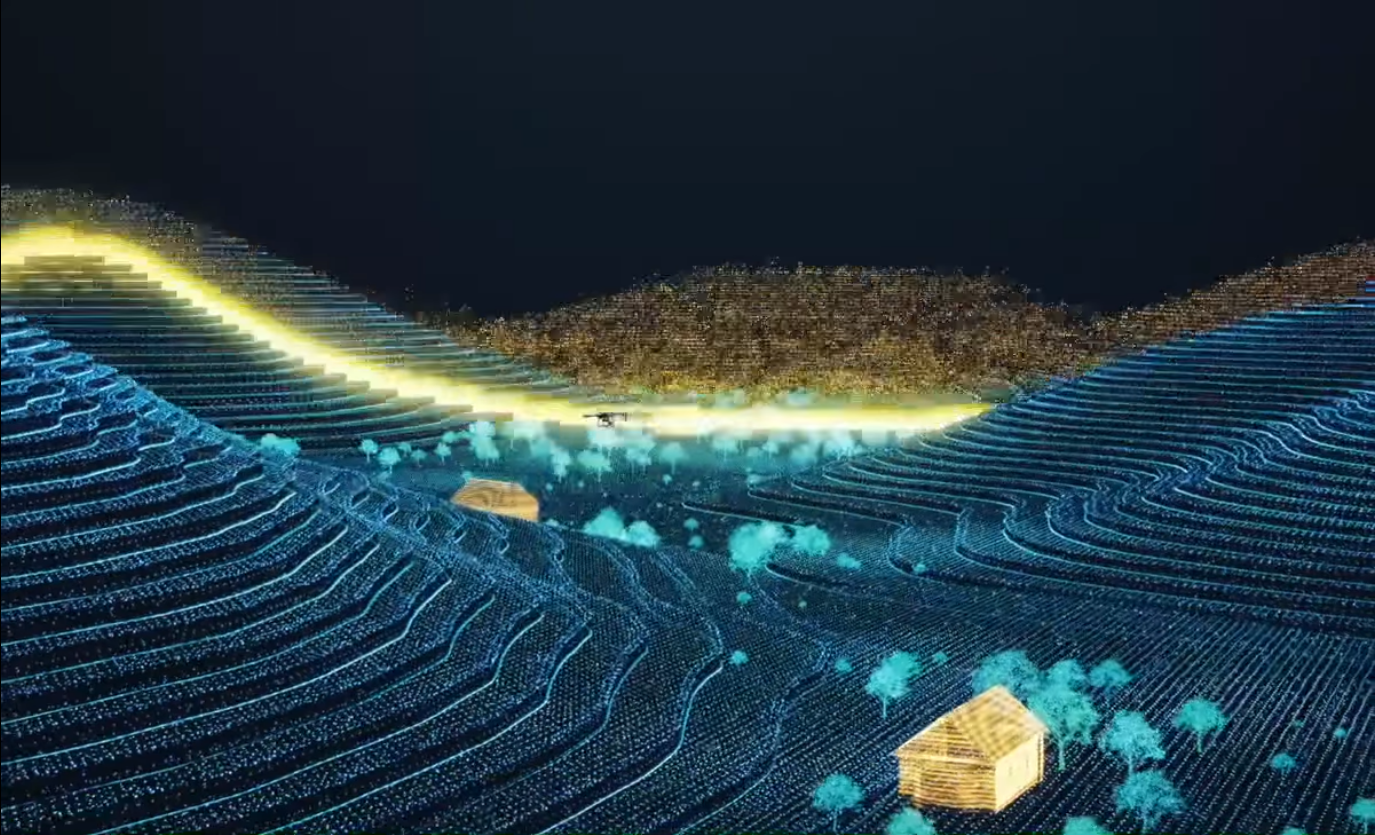

DJI AGRAS T50 is equipped with front and rear Active Phased Array Radars with double the number of RF channels for higher detection precision. Together they enable Multi-directional Obstacle Sensing, elevating operating safety. Two sets of Binocular Vision sensors enable DJI AGRAS T50 to accurately sense terrain and depict obstacles in detail, for automatic obstacle bypassing and Terrain Following over steep slopes.

One drone for surveying, spraying, and spreading

DJI AGRAS T50 integrates aerial surveying, spraying, and spreading into a single drone. A high-resolution FPV gimbal camera enables real-time capture of field and orchard images. Paired with DJI RC Plus and RTK service, you can generate high definition maps which underpin subsequent automatic flight routes. DJI AGRAS T50 can take off and perform automatic operations, all at the push of a button.

High Brightness Widescreen Remote Controller

DJI RC Plus has a 7-inch high brightness screen and an 8-core processor for smooth operations. Intelligent route planning minimizes distances flown with a full tank, greatly increasing operation efficiency. Manual mode allows you to control operations at will.

Signal Stability

The new and upgraded quad-antenna O3 Transmission system works offline even in areas without cellular coverage, offering a transmission range of 2 km [13]. Its anti-interference ability helps ensure high signal quality during operations over tall crops.

DJI Relay (Optional)

DJI Relay ensures smooth real-time video transmission for safer flights even in complex operation scenarios with signal obstructions.

Fuel-Efficient Fast Charging

The D12000iE Multi-functional Inverter Generator features electronic fuel injection (EFI) technology and saves fuel use by 15%. The DB1560 Intelligent Flight Batteries charge in an Air-Cooled Heat Sink, enabling ultra-fast charging in 9 minutes. The C10000 Intelligent Charger can charge batteries directly with utility power.

Product Videos

8 Videos

Additional information

Weight

39.9 kg (excl. battery), 52 kg (incl. battery)

Max Takeoff Weight

Max takeoff weight for spraying: 92 kg (at sea level), Max takeoff weight for spreading: 103 kg (at sea level)

Max Diagonal Wheelbase

2200 mm

Dimensions

2800×3085×820 mm (arms and propellers unfolded), 1590×1900×820 mm (arms unfolded and propellers folded), 1115×750×900 mm (arms and propellers folded)

Hovering Accuracy Range (with strong GNSS signal)

RTK enabled: Horizontal: ±10 cm, Vertical: ±10 cm, RTK disabled: Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm)

RTK/GNSSOperating Frequency

RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2, GNSS: GPS L1, GLONASS F1, BeiDou B1I, Galileo E1, QZSS L1

Max Configurable Flight Radius

2000 m

Max Wind Resistance

6 m/s

Propulsion System - Motors

Stator Size: 100×33 mm, KV: 48 rpm/V, Power: 4000 W/rotor, Propulsion System – Propellers, Material: Nylon carbon fiber filament, Dimension: 54 in (1371.6 mm), Propeller Rotation Diameter: 1375 mm, Quantity: 8

Dual Atomizing Spraying System - Spray Tank

Material: Plastic (HDPE), Volume: 40 L, Operating Payload [1]: 40 kg, Quantity: 1

Dual Atomizing Spraying System - Sprinklers

Model: LX8060SZ, Quantity: 2, Nozzle Distance: 1570 mm（Rear Nozzles）, Droplet Size: 50-500 μm, Effective Spray Width: 4-11 m (at a height of 3 m above the crops)

Dual Atomizing Spraying System - Delivery Pumps

Type: Impeller pump (magnetic drive), Quantity: 2, Single Pump Flow Rate: 0-12 L/min, Max Flow Rate: 16 L/min (2 sprinklers); 24 L/min (4 sprinklers)

T50 Spreading System

Compatible Material Diameter: 0.5-5 mm dry granules, Spread Tank Volume: 75 L, Spread Tank Internal Load: 50 kg, Spread Width: 8 m

Phased Array Radar System

Model: RD241608RF (forward phased array radar); RD241608RB (rear phased array radar), Terrain Follow: Max slope in mapping-free operation: 50°, Altitude detection range: 1-50 m, Stabilization working range: 1.5-30 m, Obstacle Avoidance: Obstacle sensing range (multi directional): 1-50 m, FOV: Forward phased array radar: horizontal 360°, vertical ±45°, upward ±45° (cone), Rear phased array radar: vertical 360°, horizontal ±45°, Working conditions: flying higher than 1.5 m over the obstacle at a horizontal speed no more than 10 m/s and vertical speed no more than 3 m/s., Safety limit distance: 2.5 m (distance between the front of propellers and the obstacle after braking), Sensing direction: 360° multi-directional sensing

Binocular Vision System

Measurement range: 0.5-29 m, Effective Sensing Speed: ≤10 m/s, FOV:Horizontal: 90°, Vertical: 106°, Operating Environment: Adequate light and discernible surroundings

Remote Controller

Model: RM700B, Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz, Max Transmission Distance: 7 km (FCC), 5 km (SRRC), 4 km (MIC/CE); (unobstructed, free of interference, and at an altitude of 2.5 m), Wi-Fi Protocol: Wi-Fi 6, Wi-Fi Operating Frequency: 2.4000-2.4835 GHz, 5.150-5.250 GHz, 5.725-5.850 GHz, Bluetooth Protocol: Bluetooth 5.1, Bluetooth Operating Frequency: 2.4000-2.4835 GHz, GNSS: GPS+Galileo+BeiDou, Screen: 7.02-in LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2, Operating Temperature: -20° to 50° C (-4° to 122° F), Storage Temperature Range: Less than one month: -30° to 45° C (-22° to 113° F), One to three months: -30° to 35° C (-22° to 95° F), Six months to one year: -30° to 30° C (-22° to 86° F), Charging Temperature: 5° to 40° C (41° to 104° F), Internal Battery Runtime: 3 hours 18 minutes, External Battery Runtime: 2 hours 42 minutes, Charging Type: It is recommended to use a locally certified USB-C charger at a maximum rated power of 65 W and maximum voltage of 20 V such as the DJI 65W Portable Charger., Charging Time: 2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)

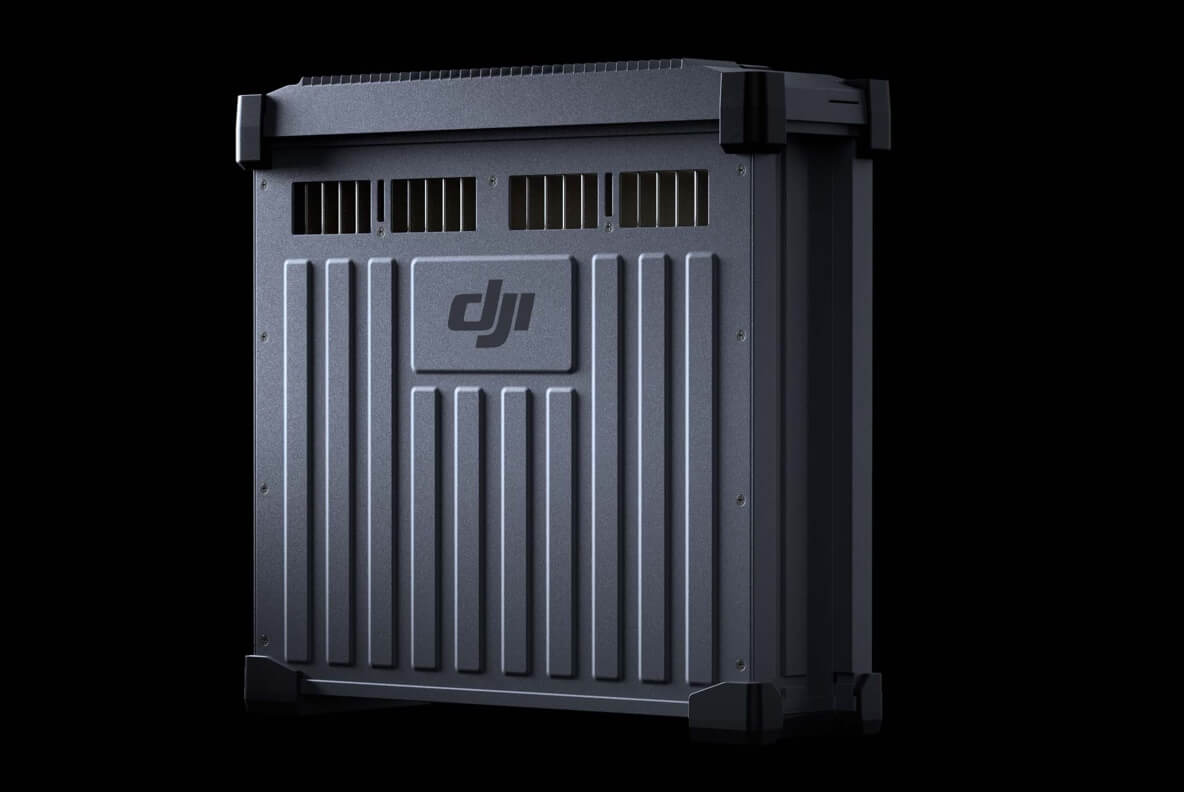

DB1560 Intelligent Flight Battery

Model: DB1560 Intelligent Flight Battery (BAX702-30000mAh-52.22V), Weight: Approx. 12.1 kg, Capacity: 30000 mAh, Nominal Voltage: 52.22 V

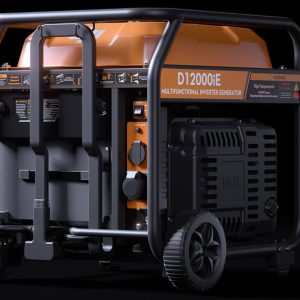

D12000iE Multifunctional Inverter Generator

Output Channel: 1.DC charging output 42-59.92V/9000W, 2.Power supply for Air-Cooled Heat Sink 12 V/6 A, 3.AC output 230V/1500W or 120V/750W, Battery Charging Time: To fully charge one battery (DB1560 battery) takes 9-12 mins, Fuel Tank Capacity: 30 L, Starting Method: Starting the Generator via the One-Button Start Switch, Max Power of Engine: 12000 W, Fuel Type:
Unleaded gasoline with RON ≥91 (AKI ≥87) and alcohol content less than 10%, (*Brazil: unleaded gasoline with RON ≥ 91 and alcohol content of 27%), Reference Fuel Consumption: 500 ml/kWh, Engine Oil: SJ 10W-40, Model:

C10000 Intelligent Power Supply

Model Number: CSX702-9500, Dimensions: 400 × 266 × 120 mm, Weight: Approx. 11.4 kg, Input/Output: Input (Main): 220-240 VAC, 50/60 Hz, 24 A MAX, Input (Auxiliary): 220-240 VAC, 50/60 Hz, 24 A MAX, Output: 59.92 VDC MAX, 175 A MAX, 9000 W MAX, Input (Main): 100-120 VAC, 50/60 Hz, 16 A MAX, Input (Auxiliary): 100-120 VAC, 50/60 Hz, 16 A MAX, Output: 59.92 VDC MAX, 60 A MAX, 3000 W MAX, Charging Time: Fully charges a battery in 9 to 12 minutes (DB1560 Intelligent Flight Battery), Protection Functions: Over-voltage, over-charge, under-voltage and over-temperature protection., Charging Safety: AC wire protection, power wire protection, and charge connector protection

Relay

Model: RL01-65, Dimensions: 120×110×100 mm, Weight: ≤575 g, Input Voltage: 9 V3 A / 12 V2.5 A / 15 V2 A, Power Consumption: 9 W (SRRC), 12 W (FCC), Capacity: 6500 mAh, Operating Time: 4 hours, Operating Frequency: 2.4000-2.4835 GHz, 5.725-5.850 GHz, Max Transmission Distance: 5 km (SRRC), 4 km (MIC/KCC/CE), 7 km (FCC) (unobstructed, free of interference, and at a flight altitude of 2.5 m), Charging Time: 2 hours and 20 minutes (when using a standard DJI charger), IP Rating: IP55
